Service Mesh
- Complexity of Microservices Networking:
- Networking in microservices and containers can become complex and opaque for developers and administrators.
- Desire for additional functionalities such as monitoring, access control, and encryption of networking traffic.
- Proxy Servers to Manage Network Traffic:
- Instead of integrating complex networking functionalities into applications, using a separate container with this functionality is a common approach.
- Software managing network traffic is known as a proxy (e.g., nginx, haproxy, envoy).
- Service Mesh Concept:
- Extending the proxy idea, a service mesh involves adding a proxy server to every container in the architecture.
- Proxies handle network communication between services.
- Examples of service meshes: istio and linkerd.
- Simplified Encryption with Service Mesh:
- Example: Achieving encryption between applications typically involves configuring libraries, managing digital certificates, etc.
- In a service mesh, traffic between applications is routed through proxies, simplifying encryption implementation.
- Data Plane and Control Plane in Service Mesh:
- Proxies in the service mesh form the data plane, where networking rules are implemented to shape traffic flow.
- The control plane centrally manages these rules, defining how traffic flows between services and specifying proxy configurations.
- Configuration vs. Code Implementation:
- Instead of writing code and installing libraries, a config file is used in a service mesh.
- Configuration file specifies rules like encrypted communication between specific services.
- Config uploaded to the control plane, distributed to the data plane to enforce the defined rules.
- Evolution of Service Mesh Terminology:
- Initially, the term “service mesh” described a basic idea of handling traffic in container platforms with proxies.
- The Service Mesh Interface (SMI) project aims to standardize the implementation of service meshes from various providers.
- Focus on Kubernetes, standardizing the end-user experience and integration with Kubernetes providers.
- Current specification available on GitHub.

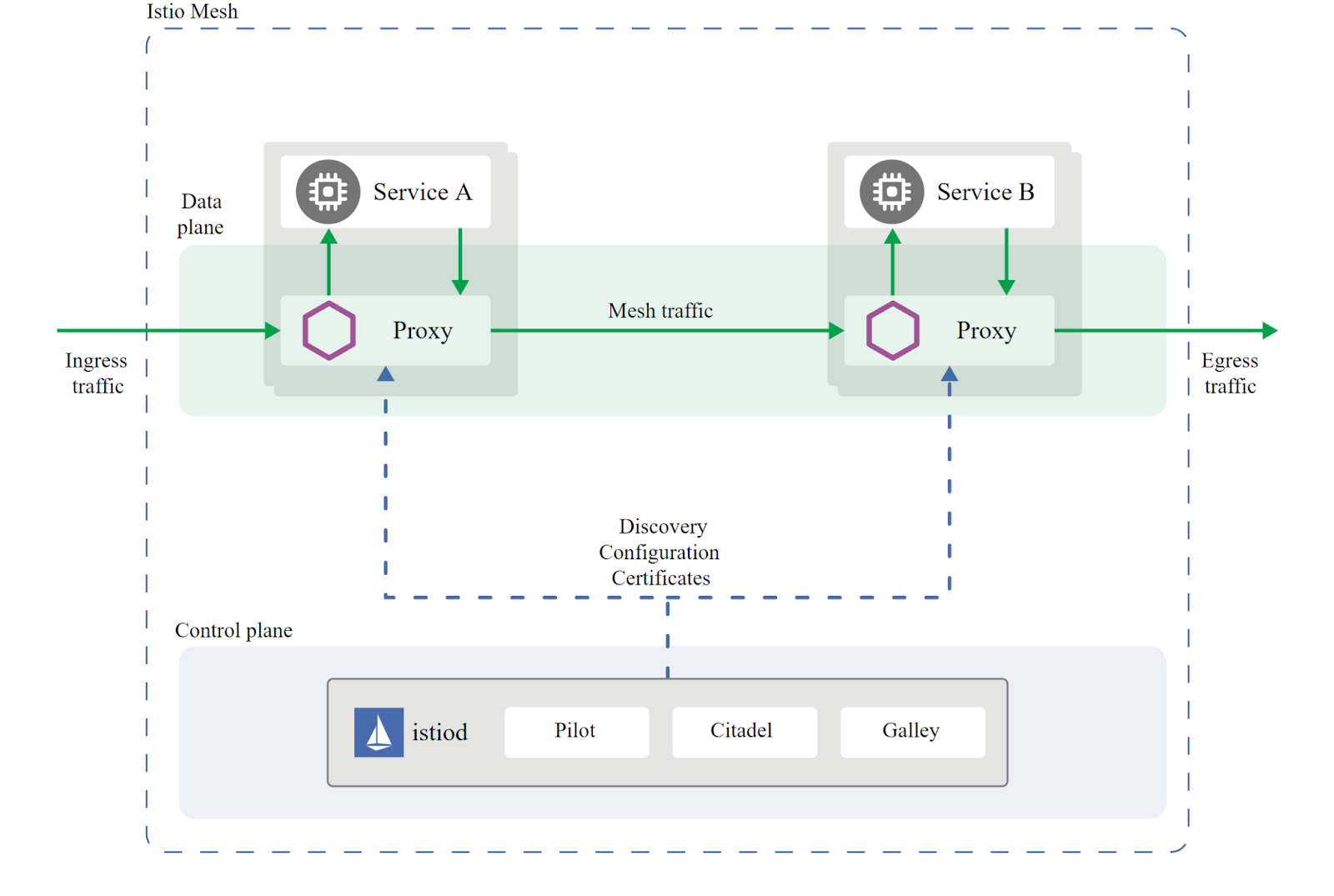

Istio Architecture, retrieved from istio.io
