Container Basics

• Container tech older than expected
• Early precursor: chroot command
• Introduced in Version 7 Unix (1979)

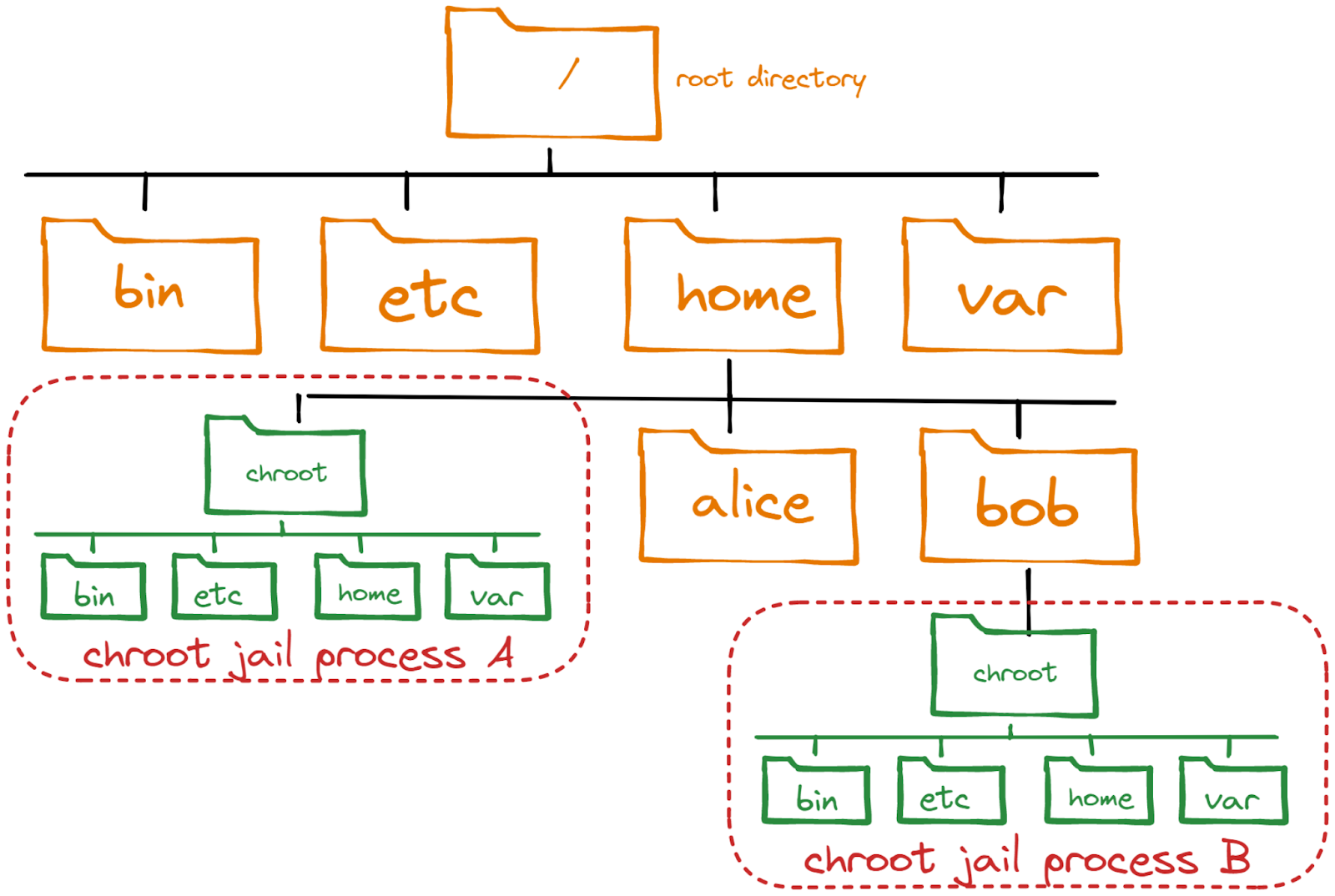

• Chroot isolates process from root filesystem
• Simulates new root directory
• Result: “chroot jail”
• Files hidden from process but still on system

Chroot directories can be created on various places in the filesystem

• Chroot Still Relevant:
  • Chroot remains in use by some contemporary software projects.
  • Modern container technologies retain the fundamental concept of chroot, incorporating advanced features.
• Enhanced Process Isolation:
  • Current Linux kernels offer advanced features for heightened process isolation.
  • Key technologies include namespaces and cgroups.
• Linux Kernel 5.6 Namespace Features:
  • pid (Process ID): Assigns a unique set of process IDs to a process.
  • net (Network): Provides a complete network abstraction, enabling individual IP addresses for processes.
  • mnt (Mount): Manages filesystem views and mount points, abstracting the file system.
  • ipc (Inter-Process Communication): Ensures separation of named shared memory segments.
  • user: Assigns processes their own set of user IDs and group IDs.
  • uts (Unix Time Sharing): Enables processes to have distinct hostnames and domain names.
  • cgroup (Control Group): A newer namespace facilitating the creation of isolated cgroup root directories.
  • time: The latest namespace, used for virtualizing the system clock.
• cgroups for Resource Management:
  • cgroups organize processes hierarchically and allocate resources such as memory and CPU.
  • Example: Limiting an application container to 4GB of memory involves utilizing cgroups to enforce these limits.

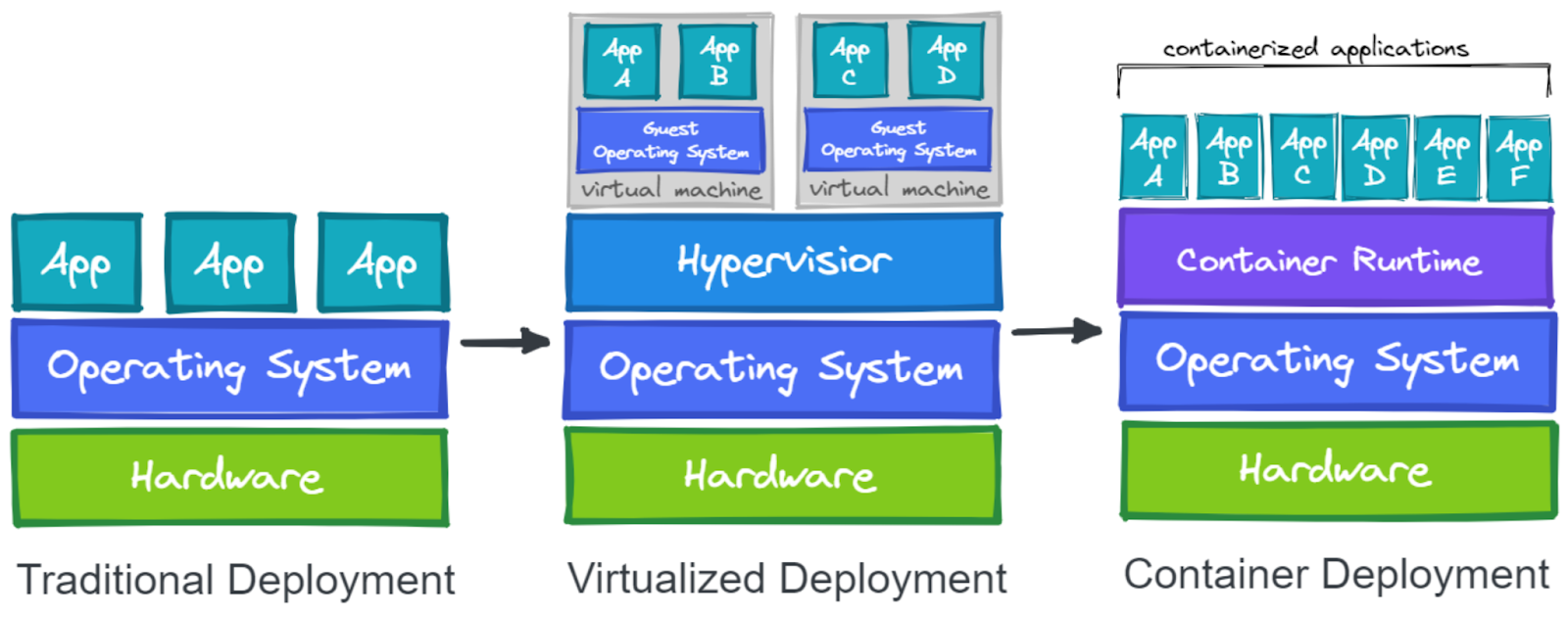

Traditional Deployment vs Virtualized Deployment vs Container Deployment

• Docker Overview:
  • Launched in 2013, Docker is synonymous with container building and execution.
  • Docker ingeniously combined existing technologies to enhance container accessibility and user-friendliness.
• Container vs. Virtual Machine Distinction:
  • Containers, despite initial similarities, differ significantly from virtual machines.
  • Virtual machines emulate an entire machine, including OS and kernel, while containers share the host machine’s kernel, functioning as isolated processes.
• Container Advantages Over Virtual Machines:
  • Containers exhibit notable advantages over virtual machines:
    • Faster startup times.
    • Smaller footprint.
    • Reduced resource usage.
• Traditional vs. Virtualized vs. Container Deployment:
  • Deployment methods:
    • Traditional: Standard deployment.
    • Virtualized: Utilizes virtual machines with some overhead.
    • Container: Leverages containers for efficiency, faster startup, and reduced resource usage.
• Hybrid Approach:
  • Often, the choice isn’t between containers and virtual machines but a combination of both.
  • Hybrid use allows harnessing container efficiency while retaining the enhanced security advantages provided by the greater isolation of virtual machines.
